WOOD ARCHING ARBOR 14
14-2
This Wood Arching Arbor is Base Price + 13%
w/keystone +21%
Go to –TABLE #2 Base Price Table

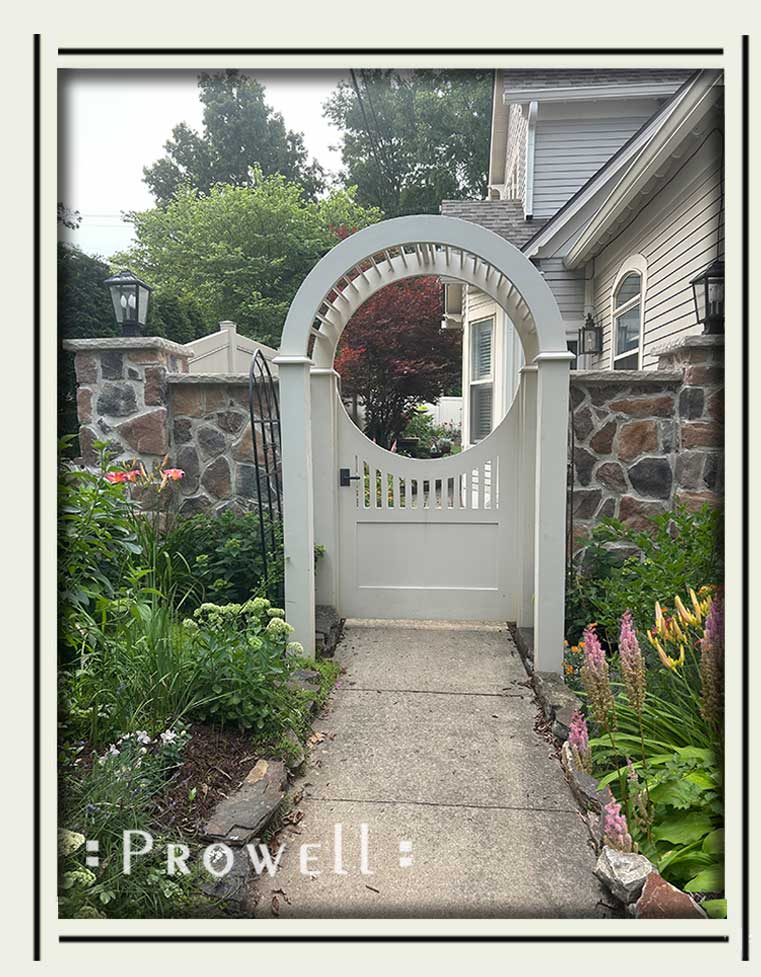

CUSTOM WOOD ARCHING ARBOR 14-2
The arching wood arbor 14 features a full radius with a height that is half the width of the distance between your gate posts.
Specifications:
- Full 180-degree radius, with mortised slats.
- Arched trusses at 1-5/8″ thickness x 3-1/2″ or 5-1/2″ width.
- Built to your specified dimensions and shipped fully assembled.
- Maximum 6′ width between posts
CUSTOM WOOD GARDEN ARBORS 14-2
14
This Wood Arbor Arch is Base Price + 16%
Go to –TABLE #2 Base Price Table
CUSTOM WOOD ARBOR 14
Shown with three U-Shaped cross-slats. Arching truss at 3-½”W
CUSTOM WOOD GARDEN ARBORS 14
Mill Valley, California
Wooden arbor with arches 14 set to 4×4 posts in Marin County, CA.
The arbor is delivered or shipped with ½” diameter threaded rod epoxied into the bottom of the trusses. Corresponding holes are to be bored into the top of the posts to accept the rod and secure the arbor in place.
14-3
This Wooden Garden Arbor is Base Price + 20%
Go to –TABLE #2 Base Price Table

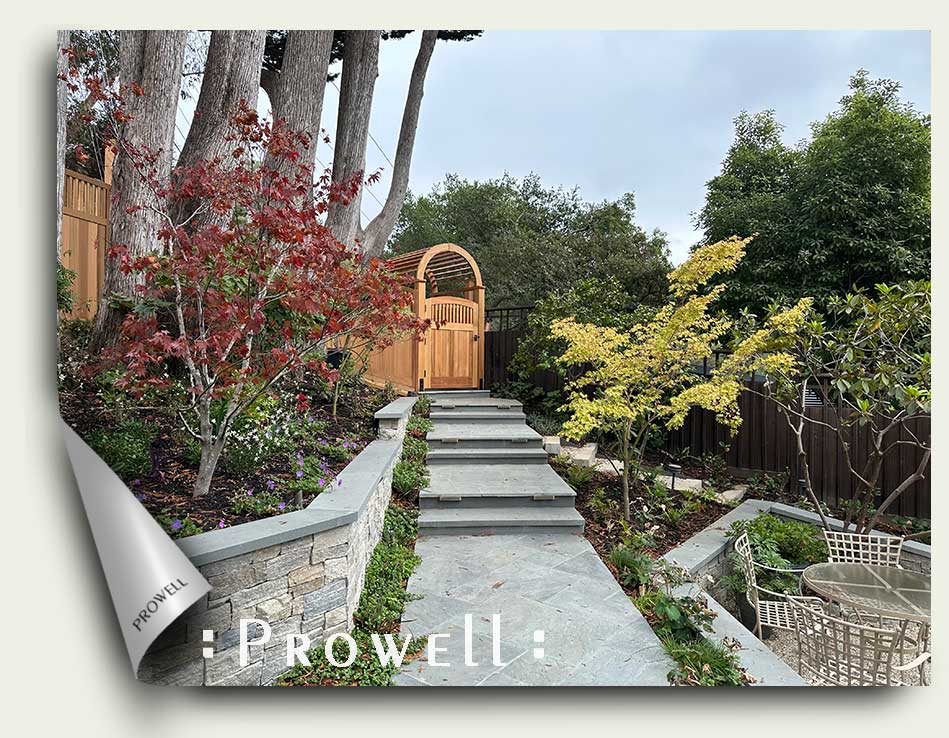

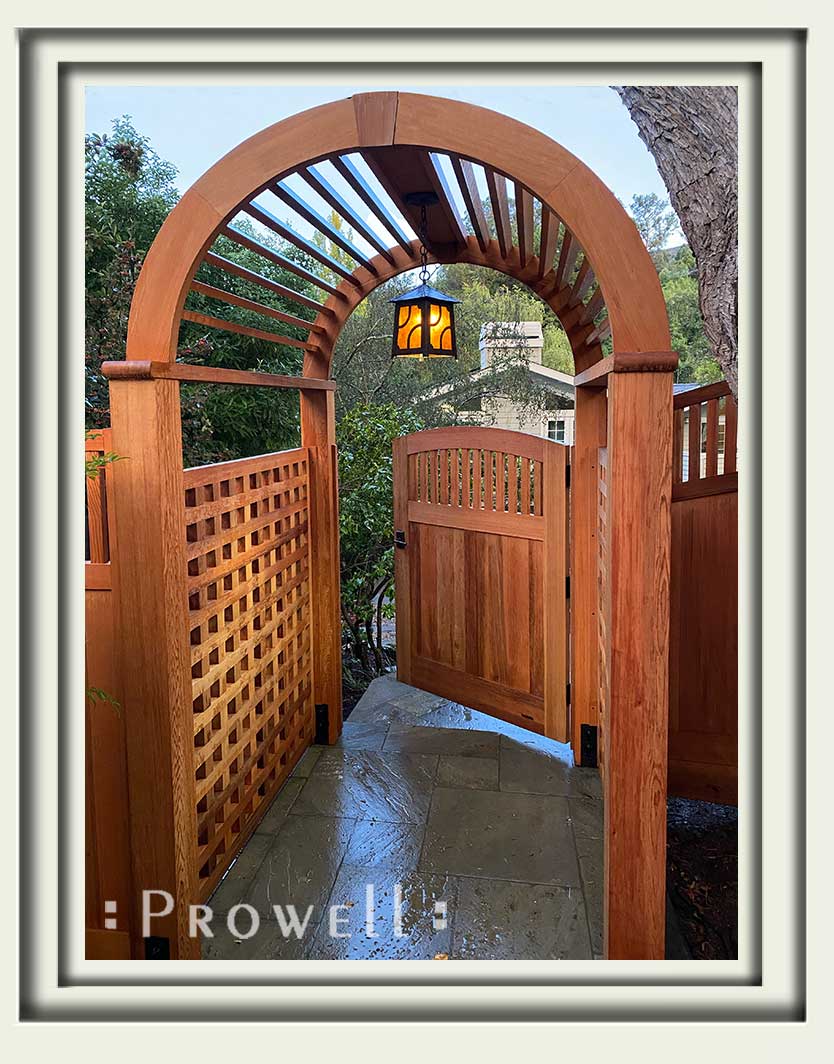

CUSTOM WOOD GARDEN ARBOR 14-3
Mill Valley, CA
W/keystone + embedded wiring

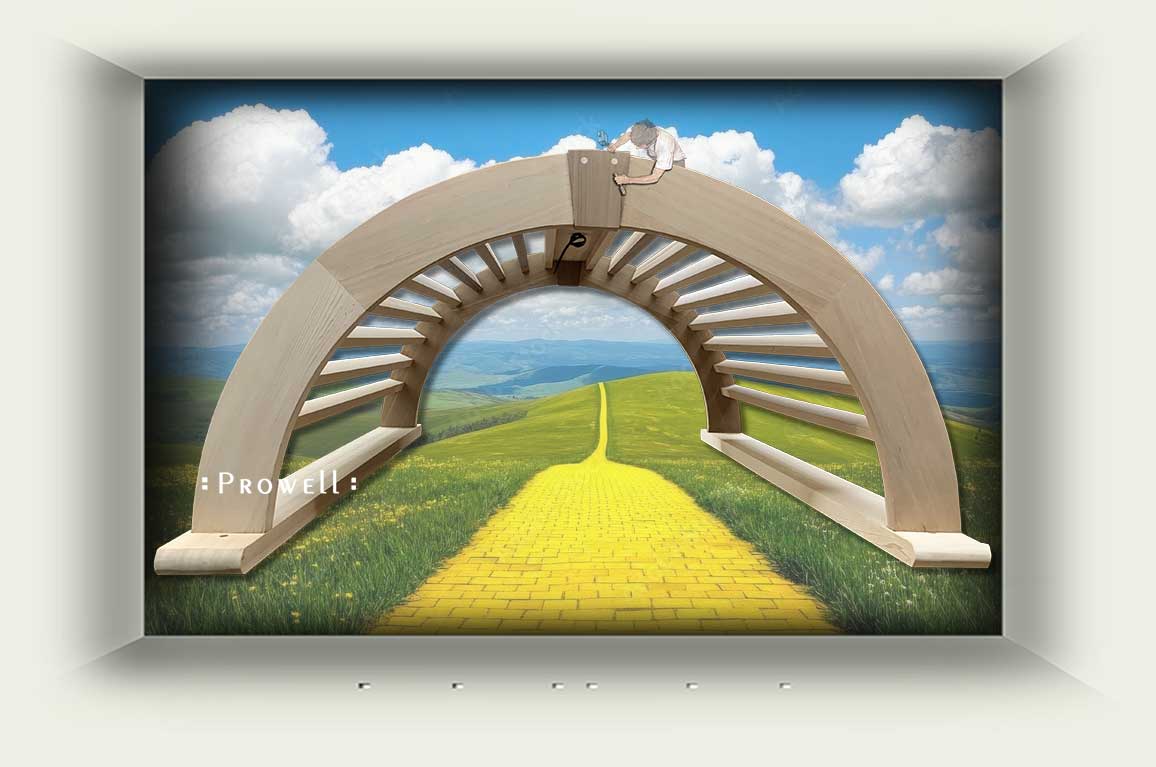

Arbor 14-3 illustrates a never-ending quest for improvements and revisions. Here we replace the standard mounting caps with a pair of cross-beams (1-3/4″T x 6″W), spanning the site posts for a simpler installation sequence and a more secure mounting procedure to the posts.
We also have a center lighting fixture with the wiring stubbed out as shown, and embedded within the arbor for a release on the far right corner of 12′ + feet to junction with the power source.
Rough opening width on entry at 48″ x 56″ foyer depth. 180º arch.
Install photo coming soon.
14-1
This Wooden Garden Arbor is Base Price + 20%
Go to –TABLE #2 Base Price Table
CUSTOM WOOD GARDEN ARBOR 14-1
Sausalito, California
W/keystone.
The original garden arbor with arches 14 from a home in Marin County, CA, showing flanking panels on either side of the gate/arbor, as well as ‘foyer’ panels within the depth of the arbor entry. Although we will often include a keystone, it is now inlaid to the arbor truss instead of as shown below.
The muted sepia exposure is not an attempt to be arty; this was back when the very first digital cameras were introduced, eliminating the time-consuming process of shooting slides, developing the slides, and scanning them into digital formats. There was no Photoshop to edit or alter the exposure and a good reminder how, to the woodworker, photography was another skill to be mastered.
Flanking Panels style #16
Gate style #57
This Old House —2002
Click Here for the hi-resolution PDF featuring Wooden Arbor #14
Click Here to view the Gallery of Articles and Features
GARDEN ARBOR 14–PROGRESS
Routing the cross-slat joints
14–PROGRESS
Fitting the cross-slats into the mortises of wooden arbor 14
14-3–PROGRESS

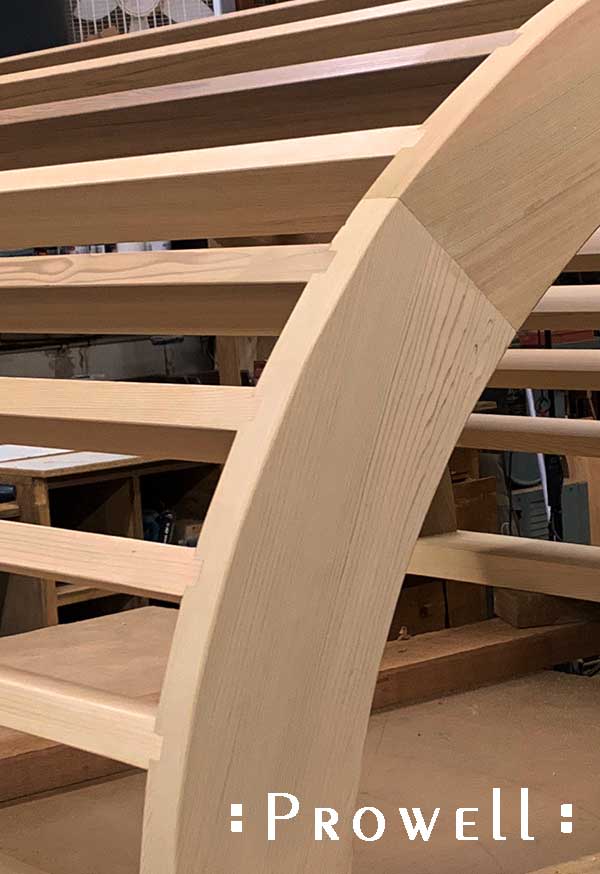

Haunched tenons fitted to corresponding mortises
14/15–PROGRESS

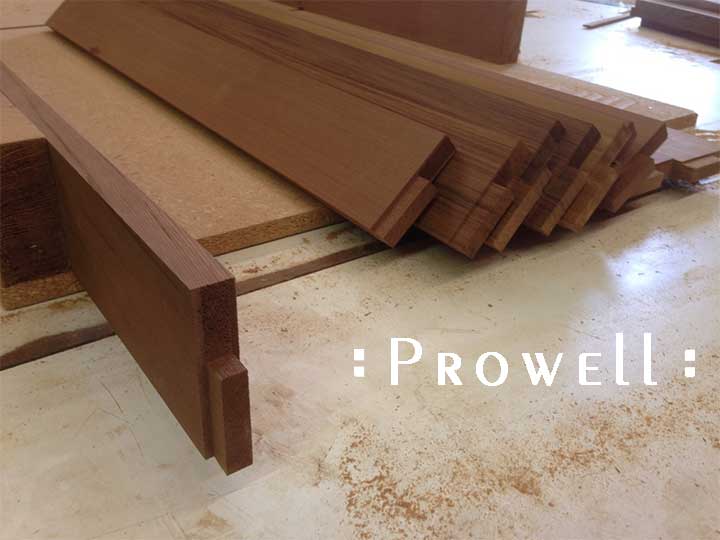

The joinery of the cross-slats for both arbor style #14 and #15 with the haunched and shouldered tenons.
#14–(0935-McCarthy)
#14-1 (-0113-Carlson)
#14-2—2418-Edwards
#14-3–2528-Baron
