Wood Gate Arbor 1, by Prowell Woodworks, inc

CUSTOM WOOD GATE ARBOR 1

Wood Gate Arbor 1 is Base Price + 23%
Go to Base Price Table

(Ground Posts not included)

1
This Arbor is Base Price + 21%
Go to –TABLE #1 Base Price Table
(5-½” posts only)

CUSTOM WOOD GATE ARBOR 1

There have been so many variations to the garden arbor #1 pattern that we’ll simply consider a few individually. Arbor 1 is designed to mount within the surround of a header beam and flanked by posts. But also where the posts themselves are foreshortened to seat themselves onto stucco , stone or masonry wall to span a pass-through opening.

CUSTOM WOOD GATE ARBOR 1

San Diego, CA

Garden gate style 10 flanked by stone columns. Gate Arbor 1, in this application, arrives fully assembled with the two extension posts at a length to insure 7′ clearance to the bottom of the Valance Panel.

When mounting onto columns or walls such as this, the bottom of the Extension Posts are bored for 1/2″ dia. threaded rod (included). The rod is set to the corresponding stone holes with epoxy. Templates are provided for boring the corresponding 9/16″ dia. holes in the columns. This results in a mounting system that eliminates unsightly iron brackets.

Wood garden arbor with gate in San Diego, CA.

1-1
This Arbor is Base Price + 21%
(5-½” posts only)
Go to –TABLE #1 Base Price Table

WOOD GARDEN ARBOR 1-1

Scarborough, Canada

Garden arbor 1-1 shown with Garden Gate style #24. Because the site posts were set specifically for our assembly, they extend to a height Prowell calls out on the drawings, fitting directly to the notched seat of the arbor beam. This eliminates the Extension posts shown in the above Arbor #1. The cost is therefore slightly less.

1-2
This Garden Arbor is Base Price + 21%
(5-½” posts only)
Go to –TABLE #1 Base Price Table

GARDEN WOOD ARBOR 1-2

Victoria, Minnesota (the western lake region).

Garden arbor 1-2 shows a residence flanked on the left by Prowell garden fence style #19, where they act as decorative screens to the front courtyard.

The Contractor provided the posts at full height.

Wood garden arbor with gate 1-2 in Minnesota.

CUSTOM WOOD GARDEN ARBOR 1-2

Victoria, Minnesota

The site contractor here has decided to reverse the orientation of his overhead beam, with the tapered profile facing up instead of down. Was this intentional, or a mere oversight?

WOOD GARDEN ARBORS 1-2

Victoria, Minnesota

Can there be anything as lovely as the first snowfall of the season in Minnesota?

custom wood fence #9 in a Minnesota winter.

1-3
This Garden Arbor is Base Price + 17%
(5-½” posts only)
Go to –TABLE #1 Base Price Table

CUSTOM WOOD GATE ARBOR 1-3

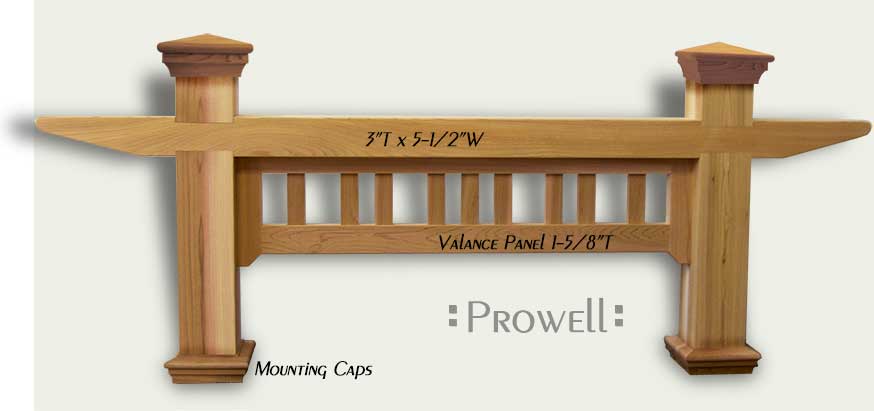

Shown with surfaced 6×6 gate posts (5-1/2″ x 5-1/2″) that were previously set to flank our gate and flanking panels. The decision to add the arbor was made as an afterthought to the original assembly.

In this application we provide the mounting caps at the bottom of the Extension Posts, fitted with embedded threaded rod. The site contractor bores corresponding holes in the top of the site posts. The rods are set with epoxy.

WOOD GATE ARBOR 1-3

Montclair, CA (Oakland hills)

Shown with Prowell’s Gate style #29, two flanking wood fence panels style 20, and a series of path railings.

CUSTOM WOOD GARDEN ARBOR 1-3

Montclair, CA (Oakland hills)

The arbor assembly set in place. The top caps, yet to be installed, are shipped separately and installed as the last step.

GARDEN ARBOR WOOD 1-3

Montclair, CA (Oakland hills)

A series of Prowell’s meandering railing panels along the hillside on the right, modified with a series of staggered metal pickets leading to the gate and arbor.

1-4
This Garden Arbor is Base Price + 26%
(5-½” posts only)
Go to –TABLE #1 Base Price Table

CUSTOM WOOD ARBOR #1-4

Arbor 1-4 with 32″ extension posts set to the top of brick columns.

Finish: WoodRX ‘Cedar’

CUSTOM WOOD GATE ARBOR 1-4

Thousand Oaks, CA

Arbor 1-4 shows a nice application to existing brick pillars and the complimenting gating gate style 4. Unfortunately, the photo quality itself is marginal, at best.
